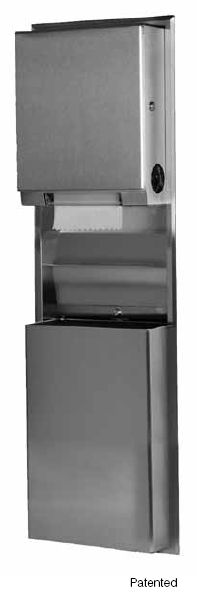

 Bobrick B-3961 ClassicSeries™
Recessed Roll Towel Dispenser/Waste Receptacle.
- Satin-finish
stainless steel.
- Seamless beveled
flange.
- Accepts paper rolls
8" (205mm) wide, 800 ft (244 m) long.
- Delivers preset
length of towel: 2-1/2", 4" or 5" (65, 100 or 125mm) per
stroke.
- Removable, 12-gal.
(45.4-L) receptacle locks into cabinet.
- Reusable Heavy-Gauge
Vinyl Liner: Order Part No. 3944-12
Recessed convertible roll
paper towel dispenser and waste receptacle shall be constructed
of type-304 stainless steel with satin finish and all-welded
construction. Flange shall be 22-gauge (0.8mm), drawn and
beveled, one-piece, seamless construction. Door shall be
18-gauge (1.2mm) stainless steel and shall be secured to cabinet
with a full-length, stainless steel piano-hinge and equipped
with two tumbler locks. Touch-free, pull-towel mechanism
dispenses 12" (305mm) length per pull of universal roll paper
towels. Accommodates 8" (205mm) wide, up to 8" (205mm) diameter
rolls, 800 ft (244m) long, plus 3-1/2" (90mm) diameter stub roll
with automatic transfer. Removable stainless steel waste
receptacle shall be 8" (205mm) deep and secured to cabinet by
tumbler lock; top and bottom edges shall be hemmed for safe
handling. Minimum capacity: 12-gal. (45.4-L). This unit is field
convertible to a universal roll towel dispenser order part no.
3961-50 (touch-free universal roll towel dispenser module). The
waste capacity can be increased order part 368-60 (18-gal.
68.0-L) |
|
